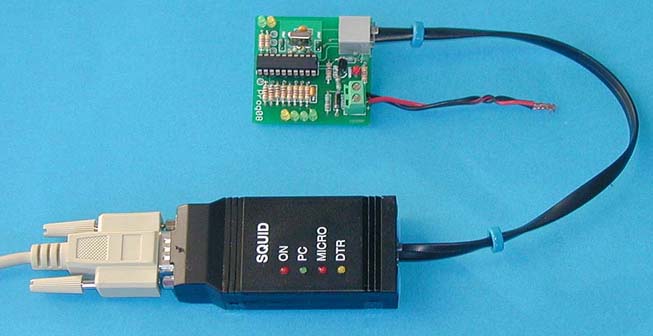

The same program with serial communication over the RS232

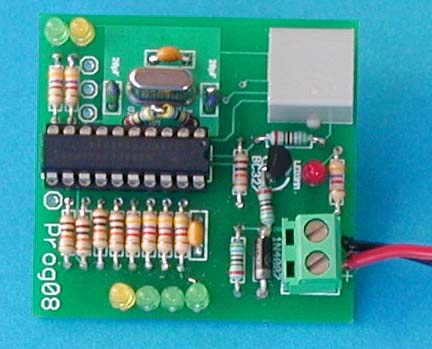

The 68HC908JK3 isn't equipped with SCI-interface. We are using a emulated SCI using PORTB BIT0
We scan this pin in the timer-interrupt ( TISR.INC) every 104 µsec
A status machine saves bit for bit in a variable
The PC sends 'B' 0x00 (two bytes) the controller answers with 64 Bytes starting with RAMSTART-address
Baudrate 2400 BAUD
*** Orgler electronic CLOCKSCI.ASM ****
RAMStart EQU $0080
RomStart EQU $F000 ;Valid for all JL3, JK3, JK
VectorStart EQU $FFDE
$Include 'jl3regs.inc' ;For the 68HC908JL3, 68HC908JK3, 68HC908JK1
$include 'rampage.inc'
org RomStart
$include 'tisr.inc'
*********************************************************************
MainInit rsp
ldhx #$80 ; Start for clearing RAM
NextRamClear clr 0,X
incx
cmpx #$FB ; Clear RAM from $00-$FB
bne NextRamClear
*----------------------------------------------------------------
mov #0,PORTD
lda #%11101000
sta DDRD
*--------------------------------------------
jsr EMUL_SCI_INIT
jsr Init_Timer
cli
**********************************************************************
**********************************************************************
LOOP sta copctl
brclr 7,TIMEBASE,loop
bclr 7,TIMEBASE
*--------------------------------------
lda LOOPCOUNT
inca
cmp #200T ; 200 * 5 = 1 second
blo Save_LoopCount
* ---
lda SECOND
inca
cmp #60T
blo SaveSecond
clra
SaveSecond sta SECOND
* ----
clra
Save_LoopCount sta LOOPCOUNT
cmp #40T
blo LED_ON
bclr 3,PORTD
bra LED_OK
LED_ON bset 3,PORTD
LED_OK
* ----------------------------
jmp loop
**************************************************************
$include 'emulsci.inc'
$include 'vectors.inc'
File TISR.INC
**************************************************************
* T_ISR - Timer Interrupt Service Routine. *
* Crystal 9,8304 MHz /4 = Busfreq => 2.457.600 *
* 1/x->406,901 nsec *
* 1 second 2.457.600 cycles *
* 10msec = 24576 cycles or 96 x 256
**************************************************************
T_ISR: pshh
lda tsc0
and #$7f
sta tsc0 ; Clear O.C. Flag
* ------------- ; 256 Clockcycles = 104 µsec
ldhx tch0h
aix #64T
sthx TCH0H
* ------------
ldhx funcEmulSci
lda PORTB
eor #BIT0
and #BIT0
jsr 0,X
lda TIMECOUNT
inca
cmp #48T
blo TIME_OK
mov #$FF,TIMEBASE ; loop time 5 msec
clra
TIME_OK sta TIMECOUNT
pulh
rti
**************************************************************
* Init_Timer - Turns on timer 1 channel 0 *
**************************************************************
Init_Timer: mov #$32,TSC ; Timer A - Cleared + Stopped.
; prescaler :4
mov #$0,TCH0H ;
mov #$0,TCH0L ;
mov #$54,TSC0 ; Timer A Channel 0 (PTD4) Toggle on output compare
mov #$02,TSC ; Start the timer -> prescaler: 4
rts
File EMULSCI.INC
***************************************************
EMUL_SCI_INIT ldhx #WAIT_START_BIT
sthx funcEmulSci
ldhx #EMULRXBUF
sthx ptrEmulSci
jsr SetPinToInport
rts
****************************************************
* 8 N 1 = 1 Startbit 8 Databits 1 Stopbit
****************************************************
WAIT_START_BIT beq exit_0
ldhx #START1_OKAY
sthx funcEmulSci
lda #2
sta countx
clr RSBYTE
lda #8
sta bitcount
exit_0 rts
*---------------------------------
set_error inc error
jmp EMUL_SCI_INIT
START1_OKAY beq set_error
dec countx
bne exit_1
ldhx #BIT_CHECK
sthx funcEmulSci
lda #4
sta countx
exit_1 rts
*-----------------------------------
BIT_CHECK dec countx
bne exit_2
clc
tsta
beq ShiftRsbyte
sec
ShiftRsbyte ror RSBYTE
lda #4
sta countx
dec bitcount
beq StopBitInit
exit_2 rts
StopBitInit lda #4
sta countx
ldhx #STOP_BIT
sthx funcEmulSci
rts
STOP_BIT dec countx
bne exit_2
tsta
bne set_error
* -----
lda RSBYTE
coma
ldhx ptrEmulSci
sta ,X
incx
sthx ptrEmulSci
cphx #EMULRXBUF+2
bhs EMUL_EVALUATE
* ------
GoWaitStartBit ldhx #WAIT_START_BIT
sthx funcEmulSci
rts
****************************************************************
EMUL_EVALUATE lda EMULRXBUF ;RAM or Ports ?
cmpa #'A'
bne EmulEvaluate2
* ---------
cphx #EMULRXBUF+5
blo GoWaitStartBit
ldhx #EMUL_SET_A
sthx funcEmulSci
rts
EmulEvaluate2 ldhx #RAM_PORT
sthx funcEmulSci
rts
**************************************************************
EMUL_SET_A lda EMULRXBUF ;'A'
add EMULRXBUF+1 ; address high
add EMULRXBUF+2 ; address low
add EMULRXBUF+3 ; value
cmpa EMULRXBUF+4 ; checksum
bne EMUL_A_EXIT
ldhx EMULRXBUF+1 ; 1+2 adresse
lda EMULRXBUF+3 ; value
sta 0,X
EMUL_A_EXIT jmp EMUL_SCI_INIT ; rts included
**************************************************************
RAM_PORT lda EMULRXBUF
cmpa #'B'
beq SEND_RAM
cmpa #'D'
beq SEND_PORT
jmp EMUL_SCI_INIT ; rts included
****************************************************************
SCI_ERROR inc SCI_ERROR_COUNT
jmp EMUL_SCI_INIT
****************************************************************
SEND_PORT ldhx #0
bra saveptrSCI
SEND_RAM ldhx #RAMStart
sthx ptrEmulSci
lda EMULRXBUF+1 ;8-Bit-Adresse
add ptrEmulSci+1
sta ptrEmulSci+1
lda ptrEmulSci
adc #0
sta ptrEmulSci
ldhx ptrEmulSci
saveptrSCI sthx ptrEmulSci ;pointer to tx-address
lda #64T ;number of bytes = 64
TxInitGo sta iTxBytes
ldhx #EMUL_TX_INIT
sthx funcEmulSci
rts
********************************************************************
EMUL_TX_INIT ldhx #TX_DELAY
sthx funcEmulSci
lda #50T ;50 x 104 = 5 msec
sta txcount
rts
*=============================================
TX_DELAY dec txcount
beq *+3
rts
jsr SetPinToOutport
ldhx #TX_START_BIT
sthx funcEmulSci
lda #4
sta txcount
rts
*============================================
TX_START_BIT dec txcount
beq *+3
rts
lda #4
sta txcount
* ---------------
bsr SetOutPortZero
ldhx ptrEmulSci
mov X+,ShiftByte
sthx ptrEmulSci
dec iTxBytes
clr SerCounter ; Counter auf Null
* ---------------
ldhx #TX_ROUTINE
sthx funcEmulSci
rts
*=====================================
TX_ROUTINE dec txcount
beq *+3
rts
lda #4
sta txcount
lsr ShiftByte ;shift rigth
bcs BitIsOne
BitIsNull bsr SetOutPortZero
bra EndShift
BitIsOne bsr SetOutPortOne
EndShift inc SerCounter
lda SerCounter
cmpa #8 ;8 Bits sent
bne Exit_TX
* ---------------------
ldhx #TX_STOP_BIT ;send with 1 StopBit
sthx funcEmulSci
Exit_TX rts
*------------------------------------------------------
TX_STOP_BIT dec txcount
beq *+3
rts
lda #4
sta txcount
bsr SetOutPortOne
* ------------------
lda iTxBytes
beq SerialDone
* ---
ldhx #TX_START_BIT
sthx funcEmulSci
* --------------------
ExitSerial rts
SerialDone jmp EMUL_SCI_INIT ;rts included
SetOutPortOne bset 0,PORTB
rts
SetOutPortZero bclr 0,PORTB
rts
SetPinToInport bclr 0,DDRB
rts
SetPinToOutport bset 0,DDRB
rts
FILE: rampage.inc
org RamStart
SECOND ds 1
TIMEBASE ds 1
TIMECOUNT ds 1
LOOPCOUNT ds 1
TIMER ds 2
************************
TEMP ds 2
**********************************************
* Emulated Serial
**********************************************
EMUL_TX_BYTES DS 1
funcEmulSci DS 2
error DS 1
bitcount DS 1
status DS 1
countx DS 1
RSBYTE DS 1
EmulSciTimeout DS 1
ptrEmulSci DS 2
SerCounter DS 1
ShiftByte DS 1
iTxBytes DS 1
txcount DS 1
SCI_ERROR_COUNT DS 1
EMULRXBUF DS 8
***************************************
***************************************
FILE: vectors.inc
**************************************************************
* Vectors - Timer Interrupt Service Routine. *
**************************************************************
org VectorStart-1
dummy_isr rti ; return
org VectorStart
dw dummy_isr ; ADC Conversion Complete Vector
dw dummy_isr ; Keyboard Vector
dw dummy_isr ; (No Vector Assigned $FFE2-$FFE3)
dw dummy_isr ; (No Vector Assigned $FFE4-$FFE5)
dw dummy_isr ; (No Vector Assigned $FFE6-$FFE7)
dw dummy_isr ; (No Vector Assigned $FFE8-$FFE9)
dw dummy_isr ; (No Vector Assigned $FFEA-$FFEB)
dw dummy_isr ; (No Vector Assigned $FFEC-$FFED)
dw dummy_isr ; (No Vector Assigned $FFEE-$FFEF)
dw dummy_isr ; (No Vector Assigned $FFF0-$FFF1)
dw dummy_isr ; TIM1 Overflow Vector
dw dummy_isr ; TIM1 Channel 1 Vector
dw T_ISR ; TIM1 Channel 0 Vector
dw dummy_isr ; (No Vector Assigned $FFF8-$FFF9)
dw dummy_isr ; ~IRQ1
dw dummy_isr ; SWI Vector
dw MainInit ; Reset Vector
FILE: jl3regs.inc
; 68HC908JL3, 68HC908JK3, 68HC908JK1 Equates
PTA EQU $0000 ; Ports and data direction
PORTA EQU $0000
PTB EQU $0001
PORTB EQU $0001
PTD EQU $0003
PORTD EQU $0003
DDRA EQU $0004
DDRB EQU $0005
DDRD EQU $0007
PDCR EQU $000A
PTAUE EQU $000D
INTKBSR EQU $001A ; IRQ & Keyboard
KBSCR EQU $001A
INTKBIER EQU $001B
KBIER EQU $001B
INTSCR EQU $001D
CONFIG1 EQU $001F ; System configuration register
CONFIG2 EQU $001E ; System configuration register
TSC EQU $0020 ; Timer
TCNTH EQU $0021
TCNTL EQU $0022
TMODH EQU $0023
TMODL EQU $0024
TSC0 EQU $0025
TCH0H EQU $0026
TCH0L EQU $0027
TSC1 EQU $0028
TCH1H EQU $0029
TCH1L EQU $002A
ADSCR EQU $003C ; ADC Converter
ADR EQU $003D
ADCLK EQU $003E
BSR EQU $FE00 ; SIM Module
RSR EQU $FE01
BFCR EQU $FE03
FLCR EQU $FE08 ; Flash control
FLSPR EQU $FE09
FLTCR EQU $FE0A
BRKH EQU $FE0C ; Break control
BRKL EQU $FE0D
BSCR EQU $FE0E
INT1 EQU $FE04 ; Interrupt Status
INT2 EQU $FE05
INT3 EQU $FE06
COPCTL EQU $FFFF ; COP control register
BIT0 EQU $01
BIT1 EQU $02
BIT2 EQU $04
BIT3 EQU $08
BIT4 EQU $10
BIT5 EQU $20
BIT6 EQU $40
BIT7 EQU $80
BIT0_INVERS EQU $FE
BIT1_INVERS EQU $FD
BIT2_INVERS EQU $FB
BIT3_INVERS EQU $F7
BIT4_INVERS EQU $EF
BIT5_INVERS EQU $DF
BIT6_INVERS EQU $BF
BIT7_INVERS EQU $7F
|
