Webcam DirectShow

1 Webcam uses functions from DirectShow

MFC Project with DirectShow functions

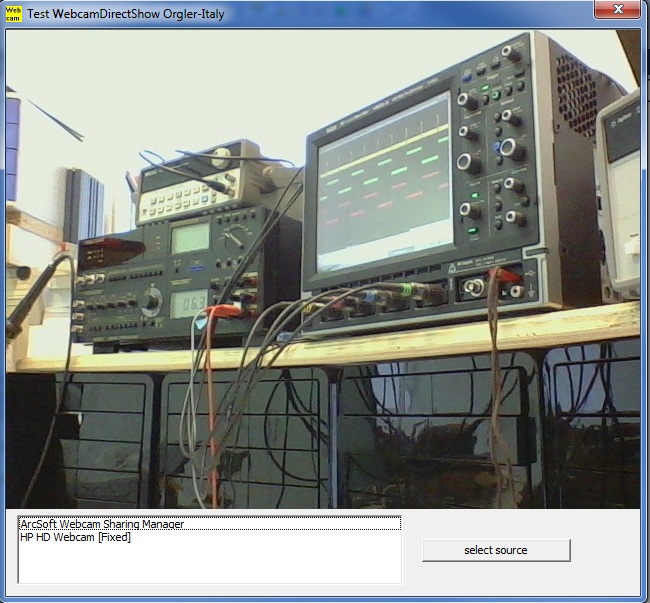

1)EnumerateAllDevices(): The programm first lists all video devices.
If there is only one webcam source start it
otherwise chose the source and click on the "select source" button

2) StartThisDevice(ii):
3) InitCapFilters():
4) BuildPreviewGraph():
5) StartPreview():

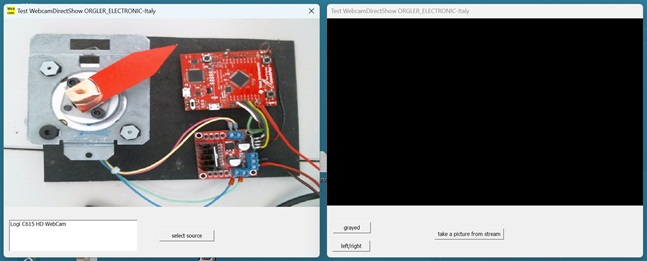

The webcam is now connected with the actual dialog window

The source was compiled with "Visual Studio Community 2026"
Create a MFC project with a dialog window
Insert the files: CaptureGraph.cpp CaptureGraph.h smartptr.h

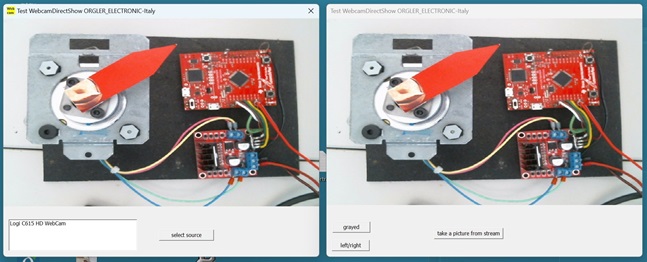

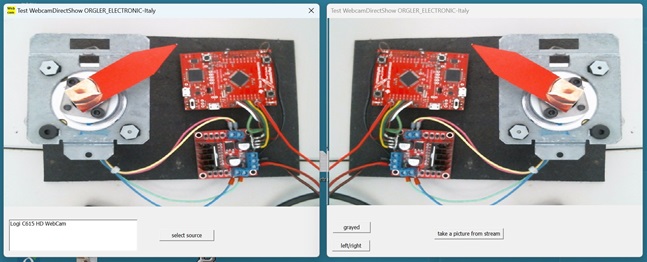

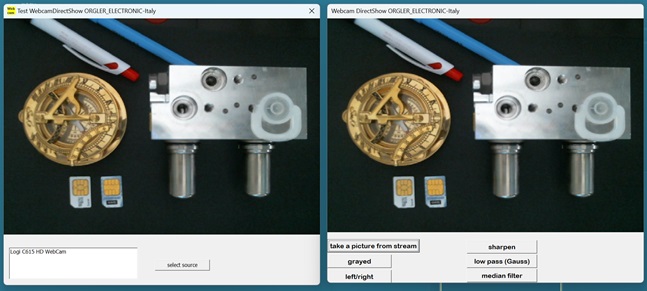

2 Take a picture from webcam stream and elaborate it

With the button "take a picture" it is possible to copy the windows content in
an array.




In the function "OnBnClickedButTakePicture()" we create first a pointer to the parent
dialog window
CWebcamDlg* pdlgWebcamWin = (CWebcamDlg*)GetParent();
CDC* dc = pdlgWebcamWin->GetDC();
At next we create a Bitmap named "bitmapScreen", the function "BitBlt" copies the
content of screen to this bitmap.

The function "GetDIBits" than copies the content of bitmapScreen into "arrImage1"
Now we can elaborate this "arrImage1" transfer elaborated data to another memory like
"arrImage2" and view this data in the other dialog window.



To view the data we must transfer the array data into device context from this window.
We use the function "SetDIBitsToDevice" in "void CWin2Dlg::OnPaint()"

A bitmap is organized in multiple of two.
RGB colors needs 3 Bytes, so we have for each pixel 4 bytes.
For every color one byte and one void byte.

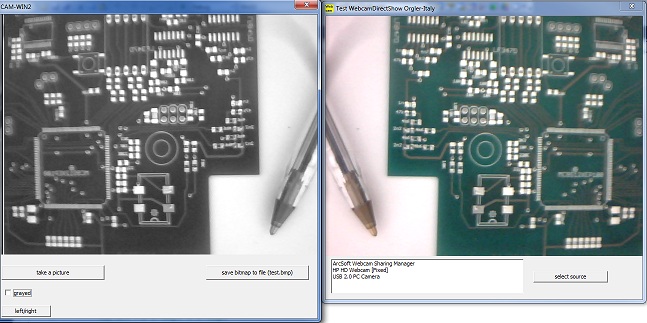

If you want to convert to grayscale a simple method is to sum all three pixels
and than divide by 3.

Better is to take the right percentages of the 3 colors.
                iGrayBlue  = cBlue  *  28;
                iGrayGreen = cGreen * 151;
                iGrayRed   = cRed   *  77;
                iGraySum   = iGrayBlue + iGrayGreen + iGrayRed;
                iGraySum   /= 256;

100 percent is equal 256.
A value multiplied with  28 and than divided about 256 is equal to 11%
A value multiplied with 152 and than divided about 256 is equal to 59%
A value multiplied with  77 and than divided about 256 is equal to 30%

The gray value is the sum of 11% blue, 59% green and 30% red.
This calculation is an example of a fast integer arithmetic

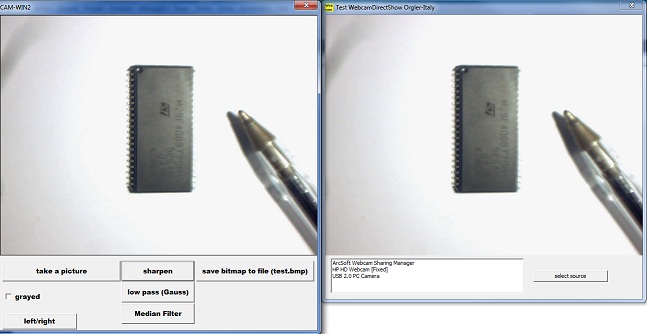

3 filter applications sharpen (high pass), GAUSS or median (low pass)

calculate image about 3x3 matrix

           High pass filter
sharpening    0 -1  0
             -1  4 -1    iDiv=4
              0 -1  0

           Low pass filter
gauss         1  2  1
              2  4  2    iDiv=16
              1  2  1

           Low pass filter
median        extract the median pixel-value from 3x3 pixel-matrix
              replace the centered pixel with this value

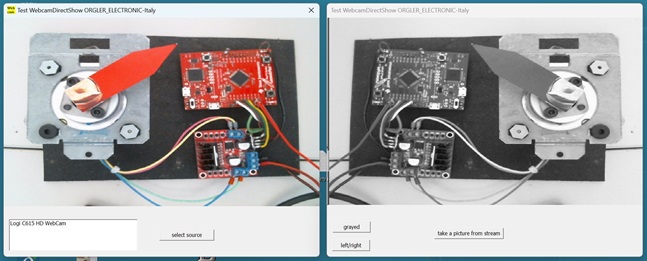

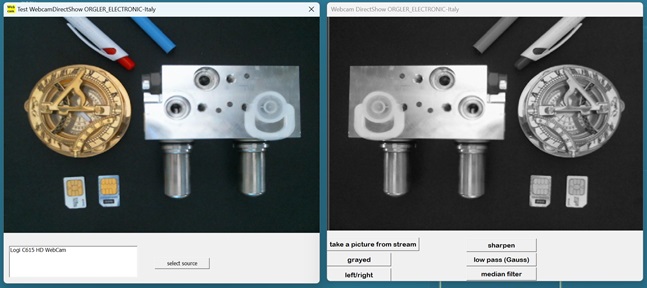

The image is reversed and converted to shades of gray

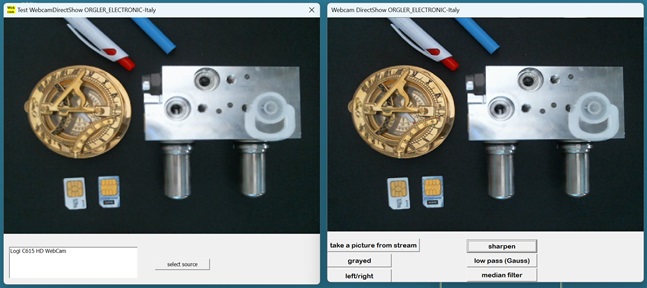

Sharpening is equivalent to a high-pass filter.
This can be repeated two or three times.

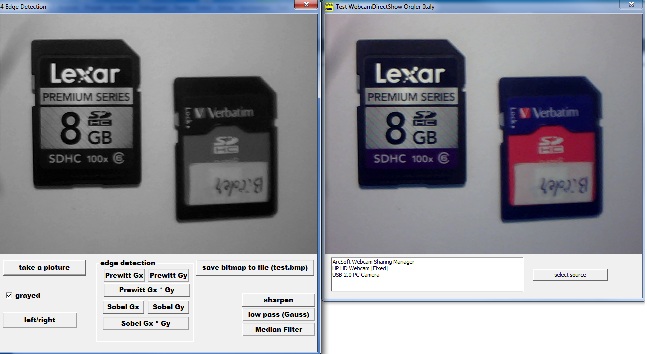

4 edge detection with operator Prewitt or Sobel

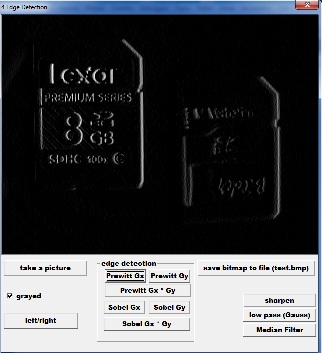

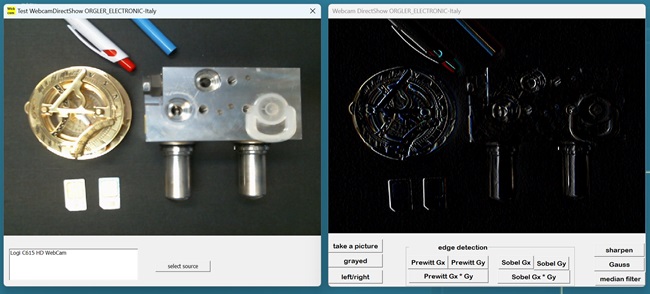

Edges with Prewitt Gx operator

       -1 0 +1
 Gx =  -1 0 +1   divisor = 1
       -1 0 +1

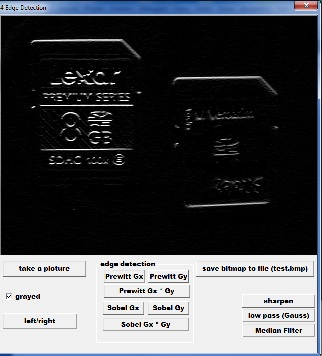

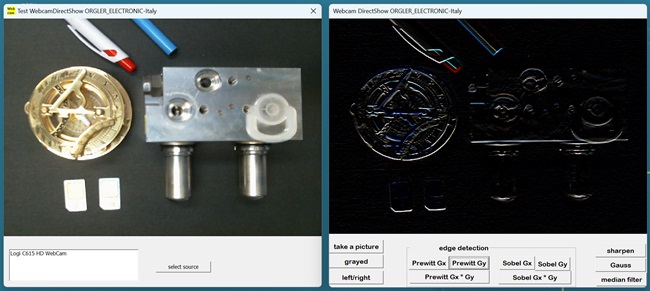

Edges with Prewitt Gy operator

       +1 +1 +1
 Gy =   0  0  0   divisor = 1
       -1 -1 -1

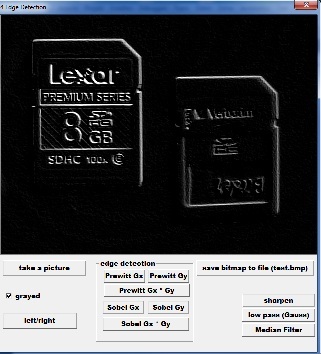

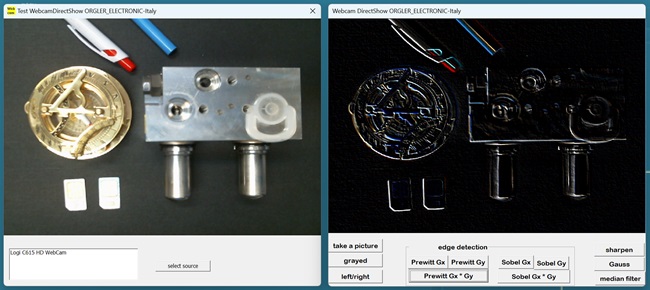

Addition of both Prewitt operators GxGy = Gx + Gy
       -1 0 +1            +1 +1 +1
 Gx =  -1 0 +1       Gy =  0  0  0
       -1 0 +1            -1 -1 -1

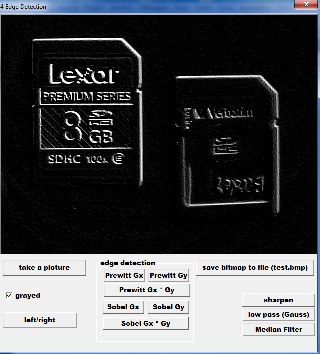

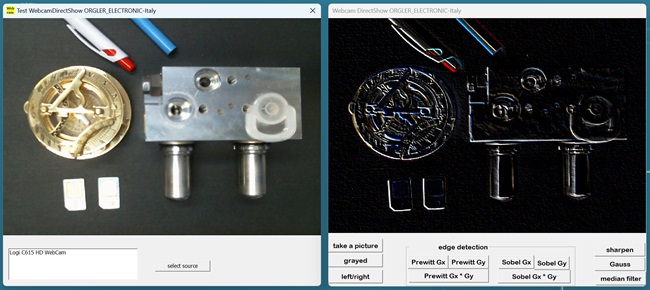

The Sobel operator:

       -1 0 +1          -1 -2 -1
 Gx =  -2 0 +2     Gy =  0  0  0
       -1 0 +1          +1 +2 +1

Webcam DirectShow

Code generation with Microsoft Visual Studio 2026
